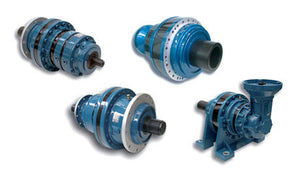

Planetary Gearbox

Vendor
PalaDrive
Regular price
Regular price
Sale price
Unit price
per
Availability
Sold out

This product is available on request. Please reach out to our sales team for your inquiries.

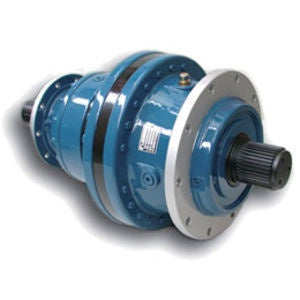

P Series

Rated Power: 0.4-12,934 kW

Ratio: 25-4,000

Input Speed: 1500, 1000, 750r/min

Output Speed: 0.19-60r/min

Output Torque: 22-2,600k Nm

Mounting: Horizontal or Vertical Mounting

Shaft Position: Coaxial, Parallel or Right Angle

Key Features:

  • High efficiency, high output torque, suitable for heavy duty working conditions
  • High reliability low noise
  • Highly modular design
  • Easily combined with other gear units; helical, worm, bevel or helical-bevel gear units

H Series

Gear Arrangement: Involute Planetary Gear

Ratio: 18-5,000

Stage: 1, 2 Stage

Efficiency: ≥ 90%

Housing: Cast Iron

Mounting: Foot or Flange Mounting

Shaft Position: In Line

Key Features:

  • Ideal for high load and continuous duty
  • High efficiency
  • Smooth operations, low noise
  • Large ratio range, intensive gear ratio
  • Modular design, easy to maintain



NGW Series

Gear Arrangement: Planetary Gear

Input Speed: 600-1,500 rpm

Ratio: 2.8-2,000

Gear Linear Velocity: ≤ 20m/s

Stage: 1, 2, 3 Stage

Mounting: Foot or Flange Mounting

Shaft Position: Coaxial Parallel or Right Angle

Key Features:

  • Compact structure, small sizes, light weight
  • High power, high load capacity, large gear ratio
  • High efficiency and reliability
  • Various frame sizes, multiple shaft positions and mounting positions
