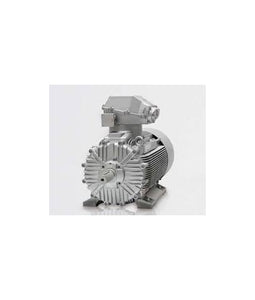

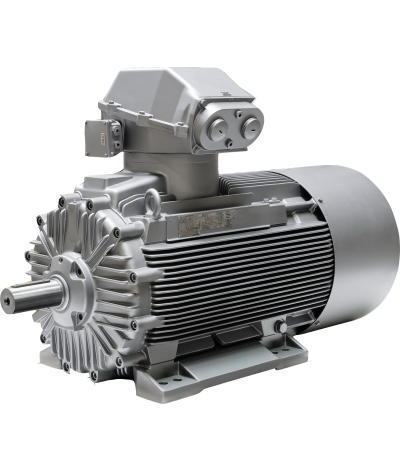

SIEMENS SIMOTICS XP 1MD5 Explosion Protection Motors

Key Features

SIMOTICS XP 1MD5 motor series, type of protection "Explosion-Proof Enclosure"
SIMOTICS XP motors of the 1MD5 series are surface-cooled, fully enclosed motors in type of protection "Explosion-Proof Enclosure". They can be designed in accordance with the current VIK recommendation ("Verband der Industriellen Energie- und Kraftwirtschaft e. V.", the Association of the Industrial Energy and Power Industry)
The motors are marked in accordance with EN 60079-0 Ed. 2009 and EN 60079-1 with II 2G Ex de IIC T4 Gb for operation in Zone 1.

Technical Specifications


Motor Type	DNGW
Frame Size	71 - 355
Outputs	0.25 - 460 kW
Temperature Class	T4
Type of Protection II	2G Ex d(e) IIC Gb, IEC/EN 60079-0, IEC/EN 60079-1 Ex zones Gas Zone 1 optional Dust Zone 22/21
Guidelines	94/9/EC (ATEX 95)
Cooling	Surface-cooled IC 411
No. of Poles	2-, 4-, 6-pole
Voltage/frequency	400, 500, 690 V/50 Hz
Degree of Protection	IP55, IP56, IP65
Type of Construction	All common types of construction
Housing	Cast-iron
Insulation	Class F utilized according to B
Special Versions	For outdoor temperatures -20 to +50 ?C Permanent load S1 Drive-end located bearing Country-specific certificates such as EAC (Eurasian Customs Union), China Energy Label, PESO (CCOE India)
