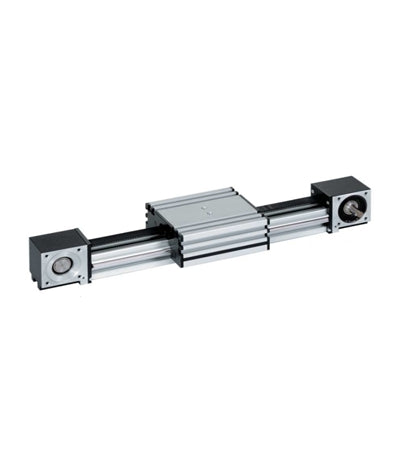

The basic construction of the profile linear unit SQZ-II corresponds to the PLZ-II. Their guide tables dimensions and height are compatible, which guarantees the compatibility and exchangability of the systems. The most important difference is the guide profile made of BLOCAN slot profile. This permits an easy assembly onto BLOCAN installation and standard accessories. The rotating movement of the drive pin is transformed into the linear movement of the guide table.
Key Features
- Sizes 30, 40, 40x80, 60, 60x120, 80 and 80x160 mm
- Guide profile from the BLOCAN profile modular system
- Guide table made of extruded aluminium with fixation slots
- Spring mounted wiper system
- Covered rollers
